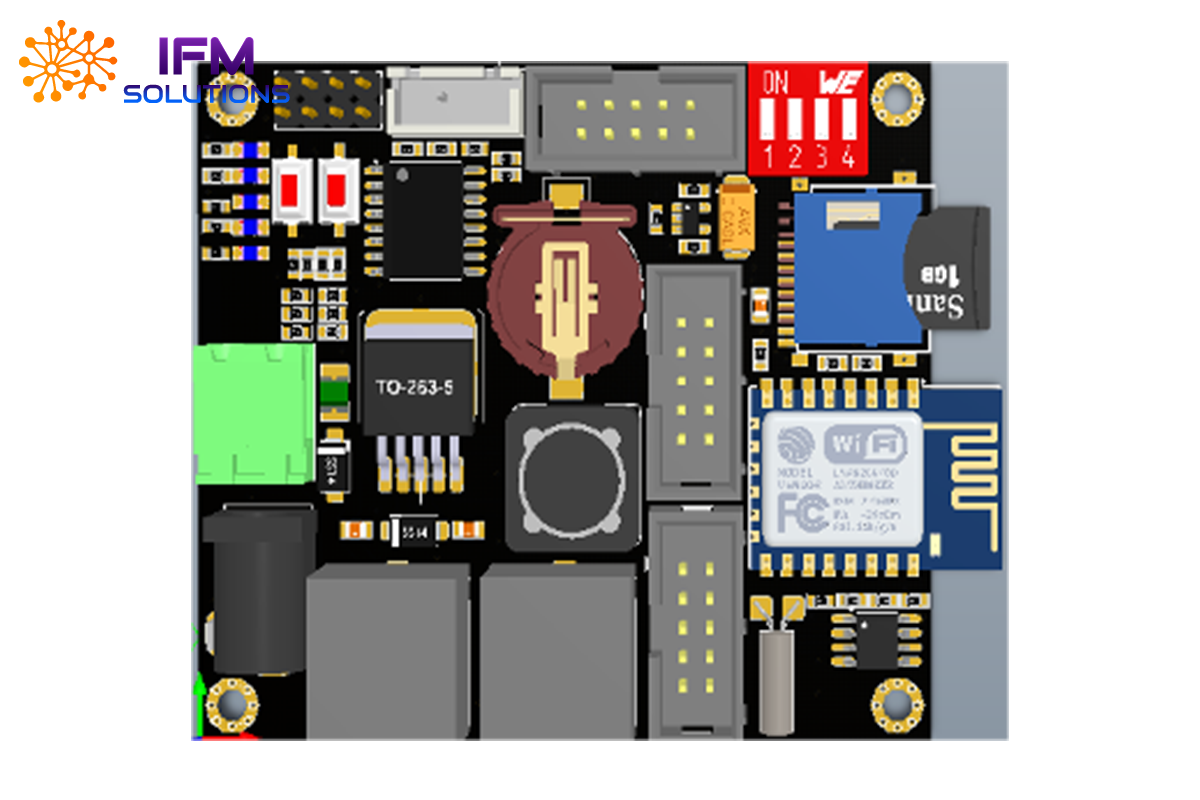

- Compatible pinout with Arduino ESP8266
- The ESP8266 WiFi Module is a self contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network.
- The boards use the FTDI’s USB 2.0 to UART TTL FT232 chip for high speed communication, which is the most advanced USB to UART chip in the world.
|
| ||||||||||||
| Microcontroller | ESP8266 / Mega2560 | – Technical Education – Robot, Robotics – Automation, Manufacturing – IoT, Smart home – Hi-tech Agriculture | |||||||||||
| Power supply | 9-24VDC | ||||||||||||
| Interface | USB,UART,I2C,SPI,IEEE 802.11 b/g/n Wi-Fi | ||||||||||||
| Digital I/O pins | 8 (8 PWM Digital I/Opins) | ||||||||||||
| Analog input pins | 1 | ||||||||||||
| DC current per I/O pin | 20 mA | ||||||||||||
| DC current for 3.3V pin | 50 mA | ||||||||||||
| Flash memory | 4 MB | ||||||||||||
| SRAM | 8 KB | ||||||||||||
| EEPROM | 256 KB | ||||||||||||
| Clock speed | 84 MHz | ||||||||||||
| Led built-in | 13 | ||||||||||||
| Dimensions (L x W x H) | 70 x 60 mm | ||||||||||||
| Weight | 50 g | ||||||||||||
